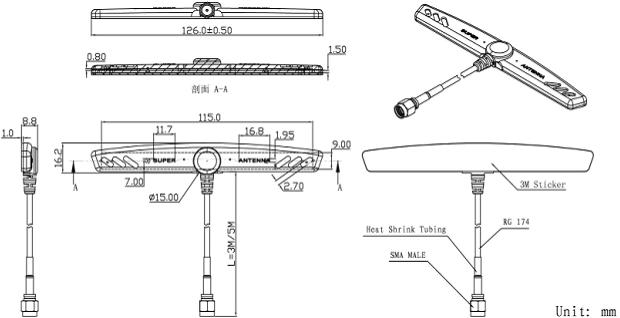

GSM Flexible Antenna GA102
GSM Flexible Antenna ,3G antenna is used in the third generation mobile communication technology is the cellular mobile communication technology for high speed data transmission. 3G services can simultaneously transmit voice and data information, rates generally in more than a few hundred kbps. 3G refers to a new generation of mobile communication system with wireless communication and multimedia technology, the 3G has four kinds of standards: CDMA2000, WCDMA, TD-SCDMA, WiMAX
| Item | Specifications | |
| Antenna | Frequency Range | 824~960/1710~2170MHz |
| Polarization | Linear | |
| Gain | 2.5dBi(Zenith) | |
| V.S.W.R | <2.0 | |
| Impendance | 50 ohm | |
| PCB Dimension | 115*9*0.8mm | |
| Mechanical | Cable | RG174 |
| Connector | SMA or others | |
| Radome Material | EVA | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | -40°C+85°C |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP67 | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
