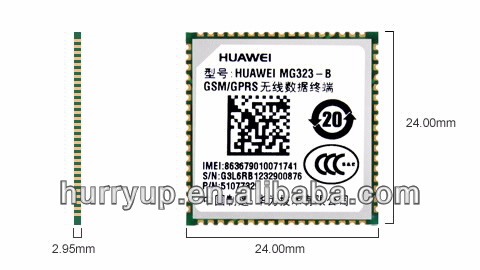

MG323 is high-quality designed Dual-band GSM/GPRS module in small size and B2B form factor which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, AMI device..etc. MG323 supports 153.6kbps downlink data rate and provides enhanced features like embedded TCP/IP stack, STK/ FTP/ HTTP/ Audio Record/ TTS, and Huawei enhanced AT commands.
All Huawei modules comply with the RoHS directive and Regional certification.
|
|
50-pin B2B |
|
|
Quad-band GPRS/GSM 1900/1800/900/850 MHz |
|
|
Downlink:85.6 kbps, Uplink: 42.8 kbps |
|
|
Antenna interface 50 ohm antenna connector Power supply Analog Audio × 2 UART SIM Card (1.8V/3.0V) Reset |
|
|
3.2 V to 4.2 V (typical: 3.8 V) |
|
|
Analog Audio |
|
|
Normal Operation: -20℃ to 70℃ Extended Operation: -30℃ to 75℃ |
|
|
STK FTP HTTP Audio Record |
|
|
CE FCC GCF PTCRB |
