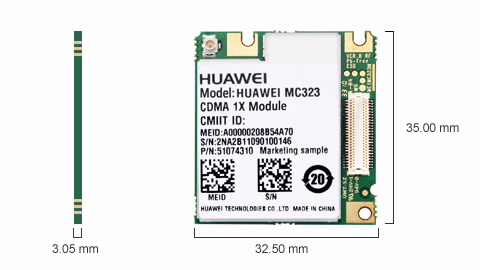

MC323 is high-quality designed Dual-band CDMA 1X module in small size and B2B form factor which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, AMI device..etc. MC323 supports 153.6kbps downlink data rate and provides enhanced features like embedded TCP/IP stack, SMS Support, and Huawei enhanced AT commands.
All Huawei modules comply with the RoHS directive and Regional certification.
|
|
50-pin B2B |
|
|
Dual-band CDMA2000 1x MC323: CDMA-band 800/1900 MHz MC323-a: CDMA-band 800 MHz |
|
|
Downlink:153.6 kbps, Uplink: 153.6 kbps |
|
|
Antenna interface 50 ohm antenna connector USB 2.0 full speed Power supply Analog Audio × 2 UART × 1 R-UIM Card (1.8V/3.0V) Reset |
|
|
3.2 V to 4.2 V (typical: 3.8 V) |
|
|
Analog Audio |
|
|
Normal Operation: -20℃ to 70℃ Extended Operation: -30℃ to 75℃ |
|
|
CE IC FCC CCC Verizon Aeris
|
