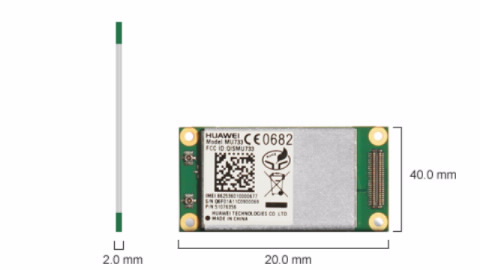

MU733 is a HSPA+ wireless data module which supports penta-band UMTS/HSPA+ and quad-band GSM/GPRS/EDGE network. It is small, lightweight, low power consumption, providing smooth access to data services of GSM, GPRS, EDGE and HSPA+ networks. The MU733 adopts 50 pin ultra-thin B2B design which supports flexible composing method and easy for manufacture and design-in. With its compact design and low consumption features, MU733 is ideal for various consumer electronics applications such as Ultra-book, tablet, PDA and so on. Furthermore, MU733 supports Windows 8 and Android 2.3 or above.
|
|
B2B |
|
|
Penta-band HSPA+ /HSPA/WCDMA: 2100/1900/900/850/AWS MHz Quad-Band EDGE/GPRS/GSM: 1900/1800/900/850 MHz |
|
|
WCDMA PS: UL (384 kbps)/DL (384 kbps) HSPA: UL (5.76 Mbps)/DL (7.2 Mbps) HSPA+: UL (5.76 Mbps)/DL (21 Mbps) GPRS/EDGE: Multi-slot Class 33, Class B |
|
|
Antenna interfaces x 2 B2B 50pin Power supply USB 2.0 high speed UICC interface |
|
|
Supply voltage range: 3.3 V to 4.2V (3.7 V recommended ) |
|
|
/ |
|
|
Normal operation: -10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C |
|
|
/ |
|
|
Supporting MO and MT Supporting formats of PDU Point-to-point and cell broadcast |
|
|
Windows 8/ Android 2.3 or above |
|
|
CE FCC GCF CCC NCC PTCRB WEEE RoHS/Halogen free REACH Global operator TA |
