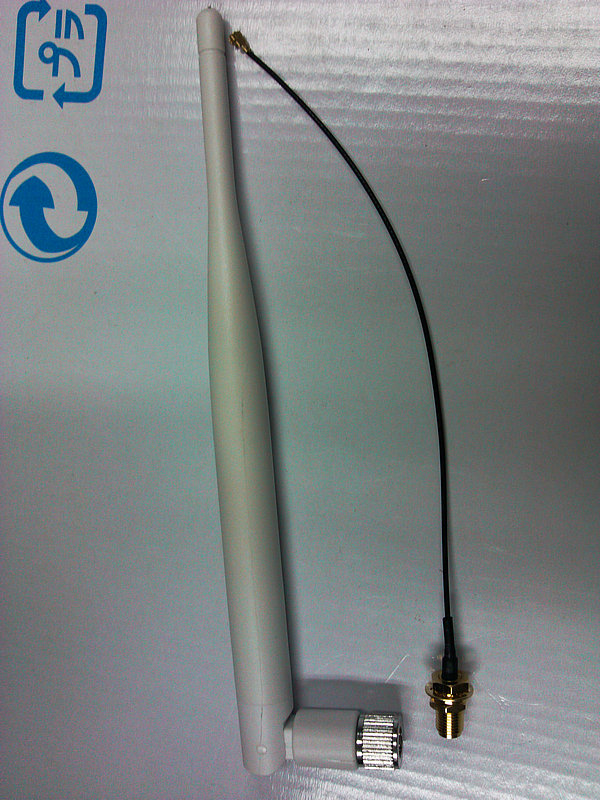

GA13 2.4G wifi Omni antenna including SMA-ipex RF cable

Electrical Specifications

Frequency Range(MHz) 2400-2500
Gain(dBi) ＞5.5
V.S.W.R. ＜1.5
Polarization Vertical
Non-Circularity(dB) ±0.5
Impedance(Ω) 50

Lightning Protection Direct Ground
Maximum Input Power(W) 50

Mechanical Specifications
Connector Type SMA
Radiating Element Material Copper
Radome Material EVA
Radome Color Gray
Dimension (mm) 140(Unbend) 92(Bend)
Tailing Cable Length(mm) 100/120/200
Packing Size(mm) 295×110×60
Wight(Kg) 0.009/12
Application Condition Indoor
Operating Temperature(℃) -40~+70
