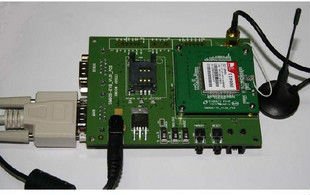

SIM900 EVB, GSM GPRS GPS module, SIM900 DEVELOPMENT KIT

Including(original accessory): Power adapter,RS232 Cable, GSM antenna, adapter cable ,headset, GPS antenna and document.

After the transaction, we will send the EVB schematics and its documents for your reference.

SIMCom presents an ultra compact and reliable wireless module-SIM900. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions. Featuring an industry-standard interface, the SIM900 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x 3 mm, SIM900 can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.

General features
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
– Class 4 (2 W @850/ 900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24*24*3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.1 ... 4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40°C to +85 °C Specifications for Fax
* Group 3, class 1 Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack Specifications for SMS via GSM/GPRS
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at late July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010) Specifications for Voice
* Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
– Half rate (HR)
– Full rate (FR) Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC Compatibility
* AT cellular command interface Certificates:
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* TA
* REACH * AT&T
